Waist High Fast Speed Lane Gate/swing Barrier Turnstile

Waist High Fast Speed Lane Gate/swing Barrier Turnstile
Waist High Fast Speed Lane Gate/swing Barrier Turnstile Waist High Fast Speed Lane Gate/swing Barrier Turnstile Waist High Fast Speed Lane Gate/swing Barrier Turnstile Waist High Fast Speed Lane Gate/swing Barrier Turnstile Waist High Fast Speed Lane Gate/swing Barrier Turnstile Waist High Fast Speed Lane Gate/swing Barrier Turnstile Waist High Fast Speed Lane Gate/swing Barrier Turnstile Waist High Fast Speed Lane Gate/swing Barrier Turnstile Waist High Fast Speed Lane Gate/swing Barrier Turnstile
Informations de base
Place of Origin: China
Nom de marque: DOOR or OEM
Certification: CE / IS09001
Model Number: DR.TD6627
Minimum Order Quantity: 1 lane
Prix: negotiable
Packaging Details: wood carton
Delivery Time: 5-7 working days
Payment Terms: T/T
Supply Ability: 2500 sets per month
meilleur prix Contactez
Material: SUS304 brushed stainless steel, Suitable For: Access Control, Entrance And Exit Control
Turnstile Material: SUS304 Stainless Communication Interface: RS485,dry Contact
Power Supply: AC110/AC220+/-10% Swing arm available: Acrylics Or Tempered Glass
Driving Motor: DC24V Brushless Motor Opening Signal Input:: Dry Contact
Working environment: -25℃-+70℃ Pass speed: 30-35 Personal/min
Support System: Face Recognition,ic/id Card,fingerprint Motor: Servo Motor MBCF 8million Times
IR Sensor: 8 pairs Passage Width: 600~900mm
IP Rating: IP42 Mean Cycles Between Failure: 20 million times
Voltage: AC110V/AC220V±10% 50-60Hz Operating Power: 30W
Method of position: Motor Driving Mtbf: 5 Million Times
Size: L1656×W150×H1000mm Input Signal: dry contact signal or +12V level signal or DC 12V
Unlock Time: 0.2s Warranty: 2 Years

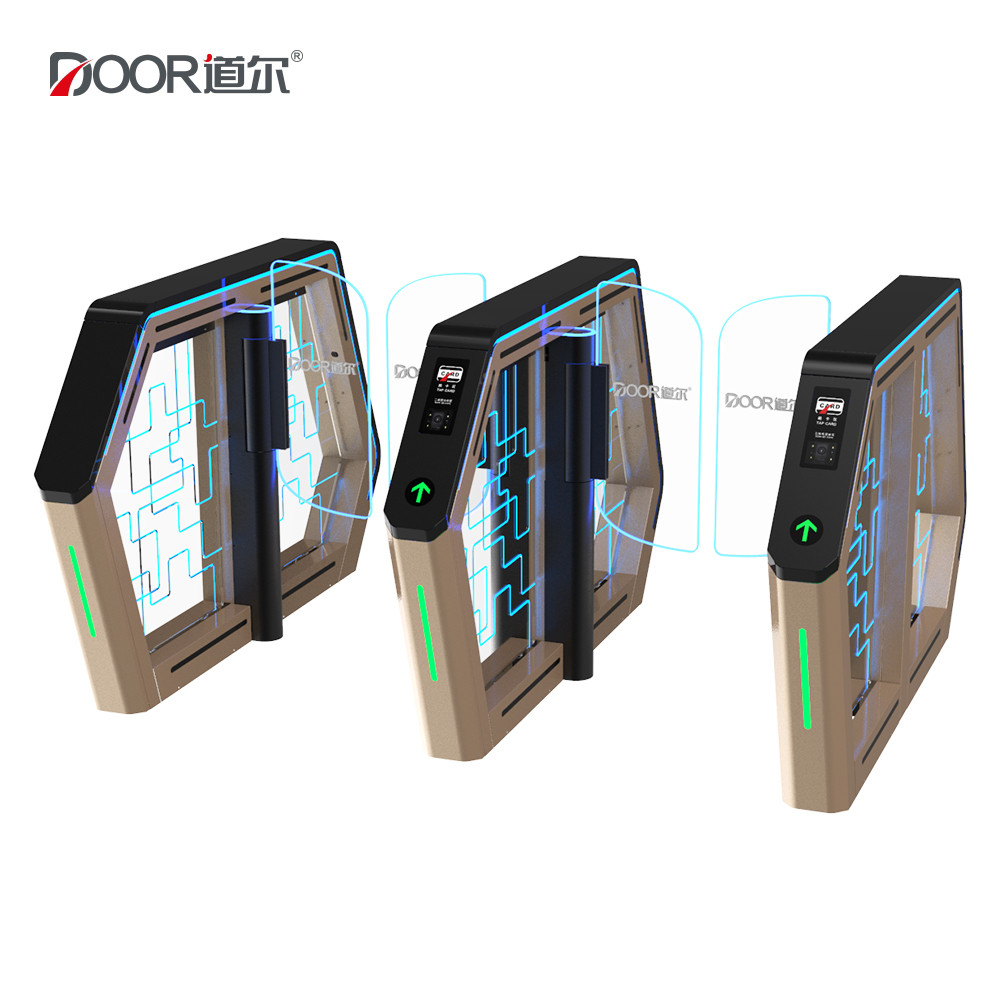

Waist High Fast Speed Lane Gate/swing Barrier Turnstile
Product Description:

This motorized barrier turnstile combines sleek architectural design with advanced access control technology, making it an ideal solution for secure, high-traffic entry points.

  • Bi-Directional Motorized Barriers - Smooth, automatic operation with clear panels for enhanced visibility.
  • Controlled Passage Mode - Upon receiving a valid access signal, the barriers open seamlessly, allowing single-direction, authorized entry.
  • Anti-Tailgating Detection - Integrated sensors detect unauthorized attempts to follow (tailgate), triggering an audible alarm and flashing red warning lights.
  • Modern & Stylish Design - Elevates the aesthetics of any facility while ensuring robust security.

Ideal for corporate offices, stadiums, transit hubs, and high-security areas, this turnstile delivers reliable access management with a sophisticated, professional appearance.

Key Features
  • Seamless Third-Party Integration: Compatible with industry-standard access control devices (IC/ID card readers, QR code scanners, facial recognition terminals, etc.).
  • Emergency Safety: Dedicated fire button interfaces with the system for automatic gate release during emergencies.
  • High-Speed Detection: 8 military-grade infrared sensors with advanced algorithms prevent tailgating, reverse passage, and clamping.
  • Enhanced Safety: Multi-layer anti-pinch design and optional widened lane for luggage/wheelchair access.
  • Seamless Integration: Compatible with RS485, TCP/IP (optional), and dry contact interfaces, works with all major access control systems.

(Note: Recognition systems not included; product provides standardized connection interfaces only)

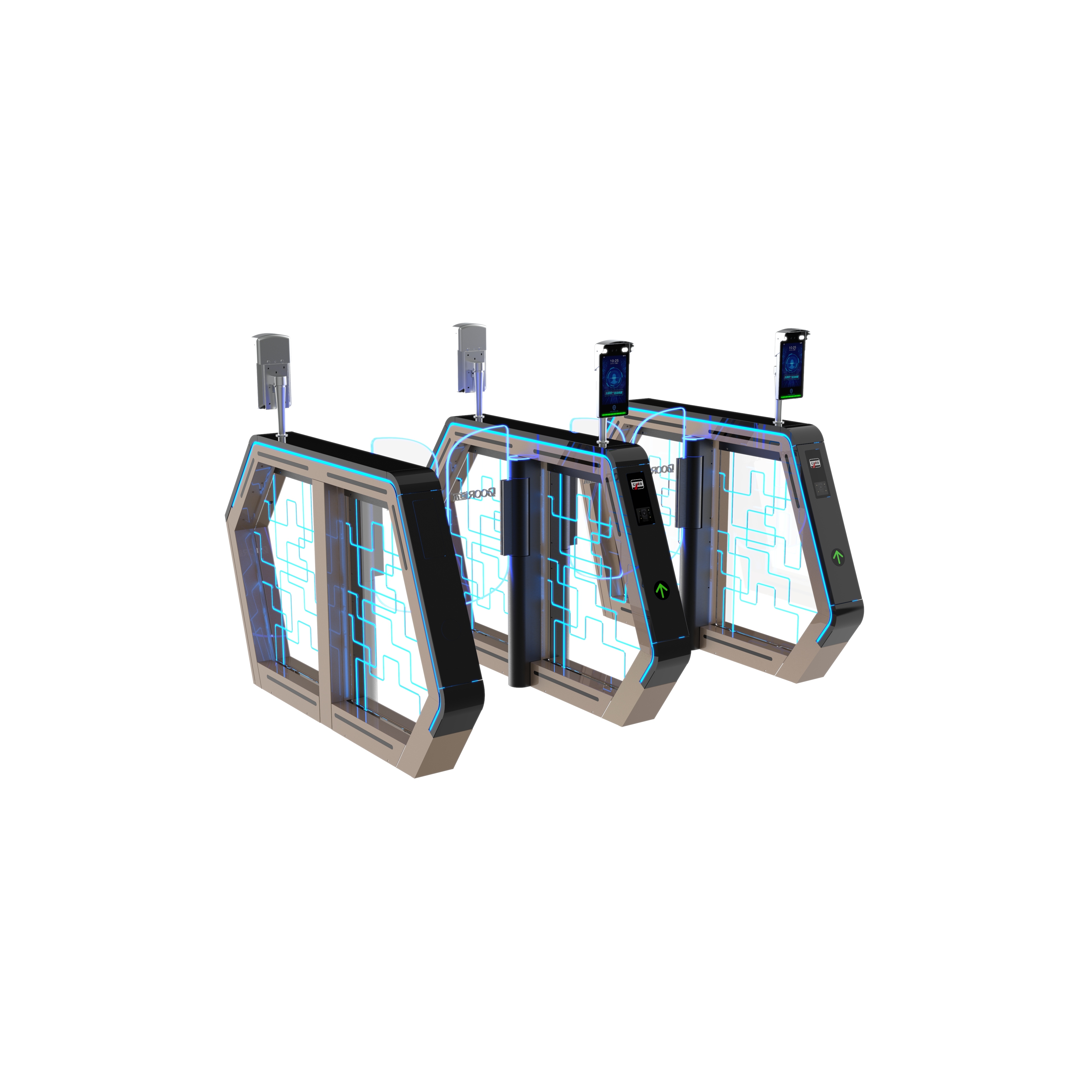

Waist High Fast Speed Lane Gate/swing Barrier Turnstile 0
Applications

Widely used for official or corporate buildings, sectioning off certain areas in University lab access points, industrial buildings or hospital radiology departments.

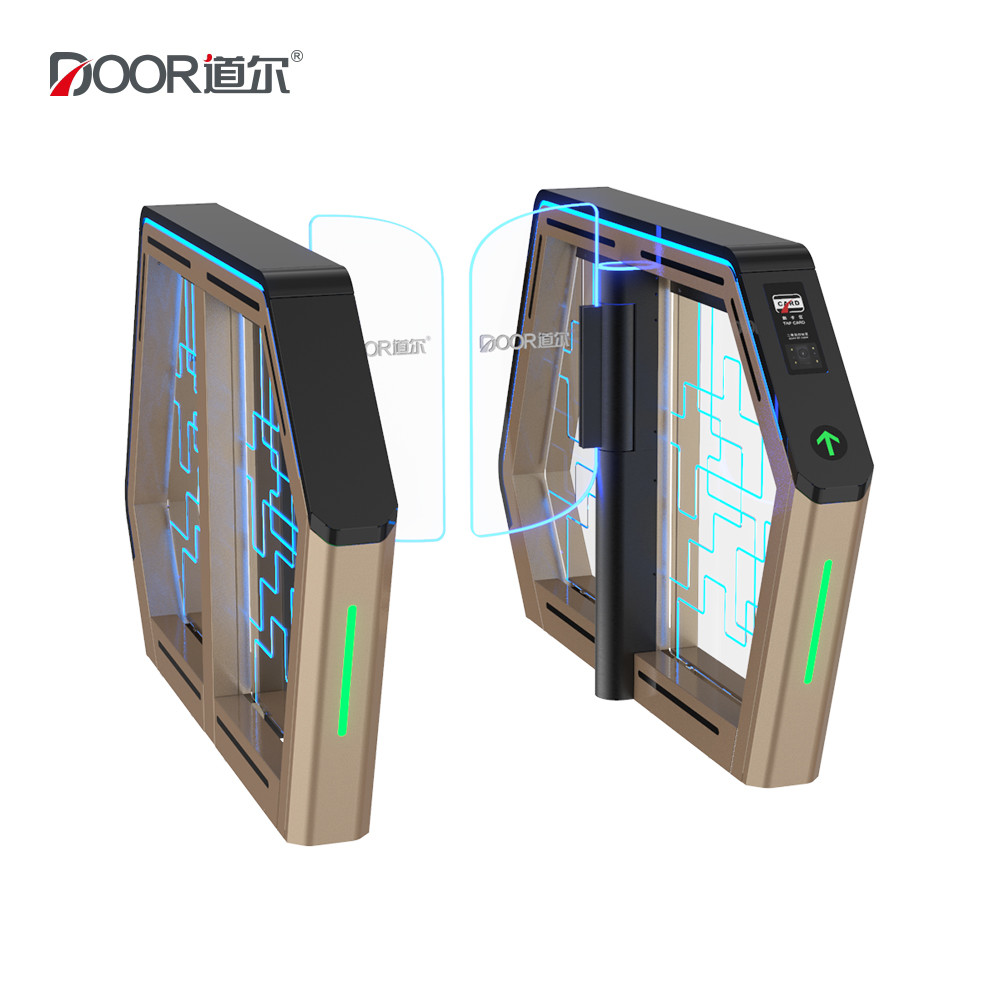

Waist High Fast Speed Lane Gate/swing Barrier Turnstile 1
Customization Options
  • Customized logo (Min. order: 2 pieces)
  • Customized packaging (Min. order: 2 pieces)
  • Graphic customization (Min. order: 2 pieces)
Supplier's Customization Ability
  • Minor customization
  • Drawing-based customization
  • Sample-based customization
  • Full customization
Shipping Information

Shipping fee and delivery date to be negotiated. Contact supplier for more details.

Contact Details
Phone Number : 86-18170481603
WhatsApp : +8618170481603
