Stainless Steel Airport Turnstile with Face Recognition and Fingerprint

Informations de base

Place of Origin:	China
Nom de marque:	DOOR or OEM
Certification:	CE / IS09001
Model Number:	DR.TD6632

Minimum Order Quantity:	2 sets
Prix:	negotiable
Packaging Details:	wood carton
Delivery Time:	5-7 working days
Payment Terms:	T/T
Supply Ability:	2500 sets per month

meilleur prix Contactez

Material:	304# Stainless Steel	Suitable For:	Access Control, Entrance And Exit Control
Turnstile Material:	SUS304 Stainless	Communication Interface:	RS485
Power Supply:	AC110/AC220+/-10%	Swing arm available:	Acrylics Or Tempered Glass
Driving Motor:	Servo motor	Opening Signal Input::	Dry Contact
Working environment:	-25℃-+70℃	Pass speed:	30-35 Personal/min
Support System:	Face Recognition,ic/id Card,fingerprint	Motor:	DC24V Brushless Motor
Passage Width:	≤700 mm	IP Rating:	IP42
Mean Cycles Between Failure:	20 million times	Voltage:	AC110V/AC220V±10% 50-60Hz
Method of position:	Motor Driving	Mtbf:	5 Million Times
Size:	L2613 .92W1100H1555.5mm	Number of Sensor:	34 groups
Mettre en évidence:	stainless steel airport turnstile , airport turnstile with face recognition , fingerprint airport turnstile

Face Recognition Fingerprint Airport Turnstile

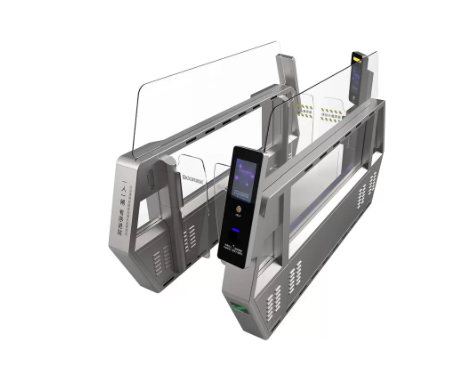

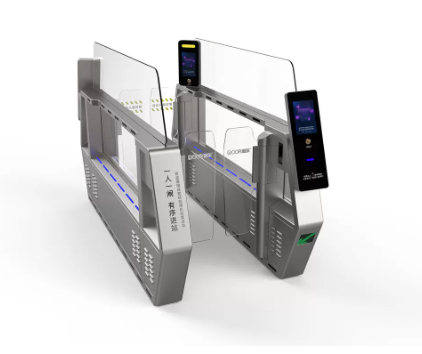

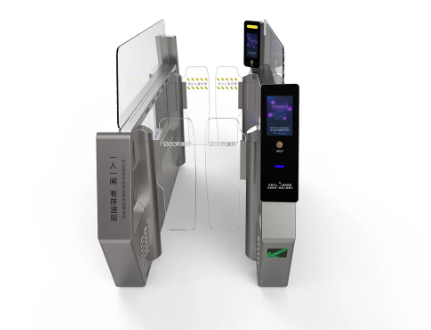

Airport Swing Gates With Light Curtain Infrared Technology

Product Specifications

Attribute	Value
Material	304# Stainless Steel
Suitable For	Access Control, Entrance And Exit Control
Turnstile Material	SUS304 Stainless
Communication Interface	RS485
Power Supply	AC110/AC220+/-10%
Swing arm available	Acrylics Or Tempered Glass
Driving Motor	Servo motor
Opening Signal Input	Dry Contact
Working environment	-25℃-+70℃
Pass speed	30-35 Personal/min
Support System	Face Recognition, IC/ID Card, Fingerprint
Motor	DC24V Brushless Motor
Passage Width	≤700 mm
IP Rating	IP42
Mean Cycles Between Failure	20 million times
Voltage	AC110V/AC220V±10% 50-60Hz
Method of position	Motor Driving
MTBF	5 Million Times
Size	L2613.92W1100H1555.5mm
Number of Sensor	34 groups

Optimized Features

Multiple Real-Name Verification: Integrates facial/fingerprint recognition, ID/passport verification, and ticket validation for accurate real-name information recording.
High-Security AB Door Interlock: Uses AB door interlock structure (Door A open/Door B closed) with passage only granted upon successful verification.
Unidirectional Traffic Control: Enforces one-way passage to manage passenger flow and optimize station management.
Brushless Servo Motor Drive: Provides stable, smooth operation with quiet performance and low power consumption.
Extended Motor Lifespan: Brushless motor design eliminates carbon brush replacement with service life of 5-8 years.
Core Face-ID Matching: Industry-leading facial recognition technology with secure data storage.
Police System Integration: Interfaces with police databases for enhanced security monitoring.

Key Features

Seamless integration with standard access control devices (IC/ID card readers, QR code scanners, etc.)
Emergency safety features with dedicated fire button interfaces
8 military-grade infrared sensors prevent tailgating and reverse passage
Multi-layer anti-pinch design with optional widened lane for luggage/wheelchair access
Compatible with RS485, TCP/IP (optional), and dry contact interfaces

Note: Recognition systems not included; product provides standardized connection interfaces only

Applications

Widely used for official or corporate buildings, university lab access points, industrial buildings, and hospital radiology departments.

Customization Options

Customized logo (Min. order: 2 pieces)
Customized packaging (Min. order: 2 pieces)
Graphic customization (Min. order: 2 pieces)

Supplier's Customization Ability

Minor customization
Drawing-based customization
Sample-based customization
Full customization

Shipping Information

Shipping fee and delivery date to be negotiated. Contact supplier for more details.
