DC Brushless Motor Facial Recognition Turnstile with RS485 Interface

DC Brushless Motor Facial Recognition Turnstile with RS485 Interface
DC Brushless Motor Facial Recognition Turnstile with RS485 Interface DC Brushless Motor Facial Recognition Turnstile with RS485 Interface DC Brushless Motor Facial Recognition Turnstile with RS485 Interface DC Brushless Motor Facial Recognition Turnstile with RS485 Interface DC Brushless Motor Facial Recognition Turnstile with RS485 Interface DC Brushless Motor Facial Recognition Turnstile with RS485 Interface DC Brushless Motor Facial Recognition Turnstile with RS485 Interface DC Brushless Motor Facial Recognition Turnstile with RS485 Interface DC Brushless Motor Facial Recognition Turnstile with RS485 Interface DC Brushless Motor Facial Recognition Turnstile with RS485 Interface DC Brushless Motor Facial Recognition Turnstile with RS485 Interface DC Brushless Motor Facial Recognition Turnstile with RS485 Interface DC Brushless Motor Facial Recognition Turnstile with RS485 Interface DC Brushless Motor Facial Recognition Turnstile with RS485 Interface DC Brushless Motor Facial Recognition Turnstile with RS485 Interface
Informations de base
Place of Origin: China
Nom de marque: DOOR or OEM
Certification: CE / IS09001
Model Number: DR.TD6909X
Minimum Order Quantity: 2 sets
Prix: negotiable
Packaging Details: wood carton
Delivery Time: 5-7 working days
Payment Terms: T/T
Supply Ability: 2500 sets per month
meilleur prix Contactez
Material: SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm Suitable For: Access Control, Entrance And Exit Control
Turnstile Material: SUS304 Stainless Communication Interface: RS485
Power Supply: AC110/AC220+/-10% Swing arm available: 12mm thickness PC
Driving Motor: DC brushless motor Opening Signal Input:: Dry Contact
Working environment: -25℃-+70℃ Support System: Face Recognition,ic/id Card,fingerprint
Motor: DC24V Brushless Motor Passage Width: 550mm
IP Rating: IP24(if used outdoor, recommend to build a canopy) Mean Cycles Between Failure: 20 million times
Voltage: AC110V/AC220V±10% 50-60Hz Method of position: Motor drive
Mtbf: 5 Million Times Opening Speed: Adjustable <1S
Power: Single Core 35w, dual core 60W
Mettre en évidence:

DC brushless motor facial recognition turnstile

,

facial recognition turnstile with RS485

,

RS485 interface access control turnstile

DC Brushless Motor Facial Recognition Turnstile Entry Systems
Product Specifications
Attribute Value
Material SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm
Suitable For Access Control, Entrance And Exit Control
Turnstile Material SUS304 Stainless
Communication Interface RS485
Power Supply AC110/AC220+/-10%
Swing arm available 12mm thickness PC
Driving Motor DC brushless motor
Opening Signal Input Dry Contact
Working environment -25℃-+70℃
Support System Face Recognition, IC/ID Card, Fingerprint
Motor DC24V Brushless Motor
Passage Width 550mm
IP Rating IP24 (if used outdoor, recommend to build a canopy)
Mean Cycles Between Failure 20 million times
Voltage AC110V/AC220V±10% 50-60Hz
Method of position Motor drive
MTBF 5 Million Times
Opening Speed Adjustable <1S
Power Single Core 35w, dual core 60W
Product Description

The DC Brushless Motor Automatic Retractable Flap Turnstile offers long lifespan and reliable performance for access control applications. This popular system provides fast access clearance with minimal supervision requirements.

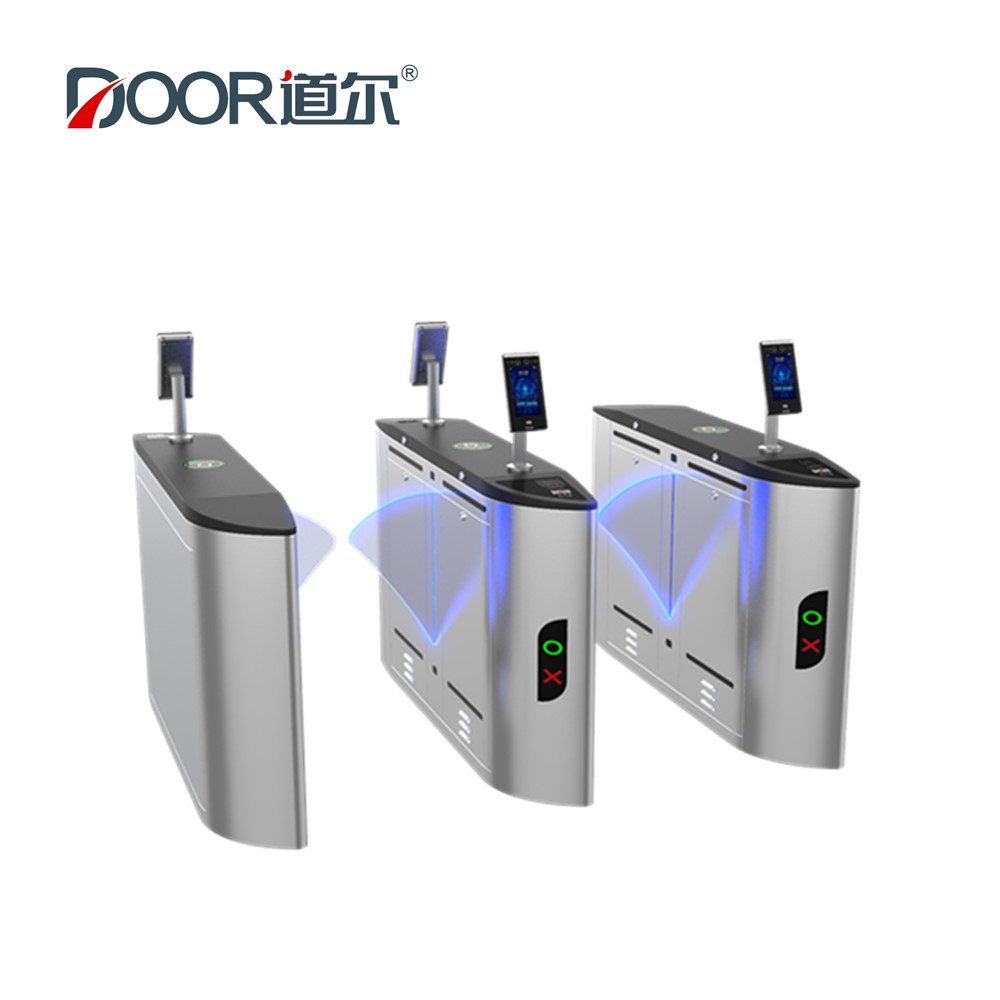

DC Brushless Motor Facial Recognition Turnstile with RS485 Interface 0
Key Features
  • Seamless Third-Party Integration: Compatible with industry-standard access control devices (IC/ID card readers, QR code scanners, facial recognition terminals)
  • Emergency Safety: Dedicated fire button interfaces with the system for automatic gate release during emergencies
  • High-Speed Detection: 8 military-grade infrared sensors with advanced algorithms prevent tailgating, reverse passage, and clamping
  • Enhanced Safety: Multi-layer anti-pinch design and optional widened lane for luggage/wheelchair access
  • Seamless Integration: Compatible with RS485, TCP/IP (optional), and dry contact interfaces, works with all major access control systems
Note: Recognition systems not included; product provides standardized connection interfaces only
Applications

Widely used for official or corporate buildings, sectioning off certain areas in university lab access points, industrial buildings or hospital radiology departments.

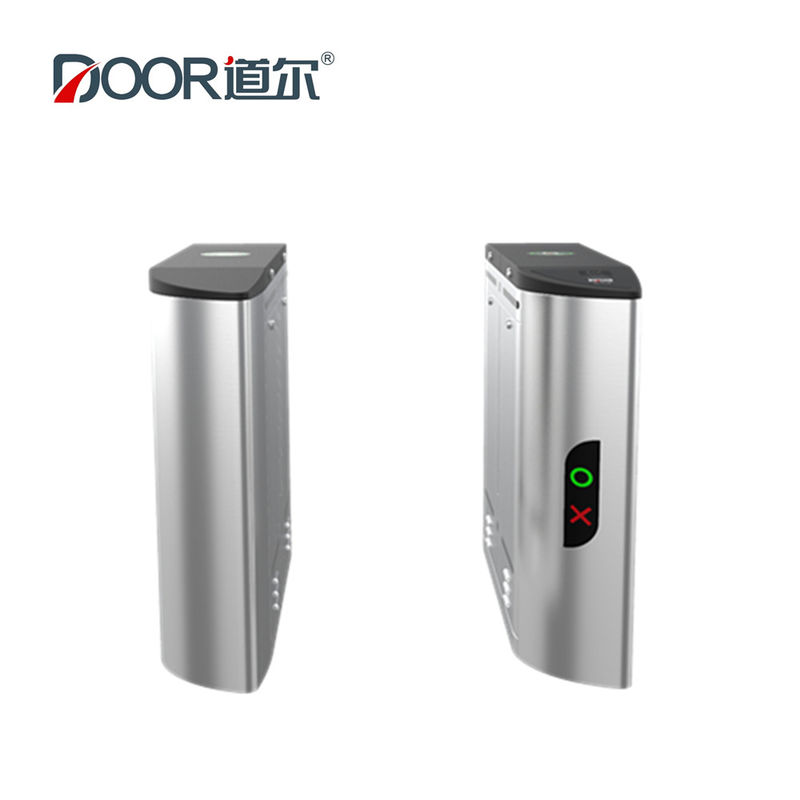

DC Brushless Motor Facial Recognition Turnstile with RS485 Interface 1
Customization Options
  • Customized logo (Min. order: 2 pieces)
  • Customized packaging (Min. order: 2 pieces)
  • Graphic customization (Min. order: 2 pieces)
Supplier's Customization Ability
  • Minor customization
  • Drawing-based customization
  • Sample-based customization
  • Full customization

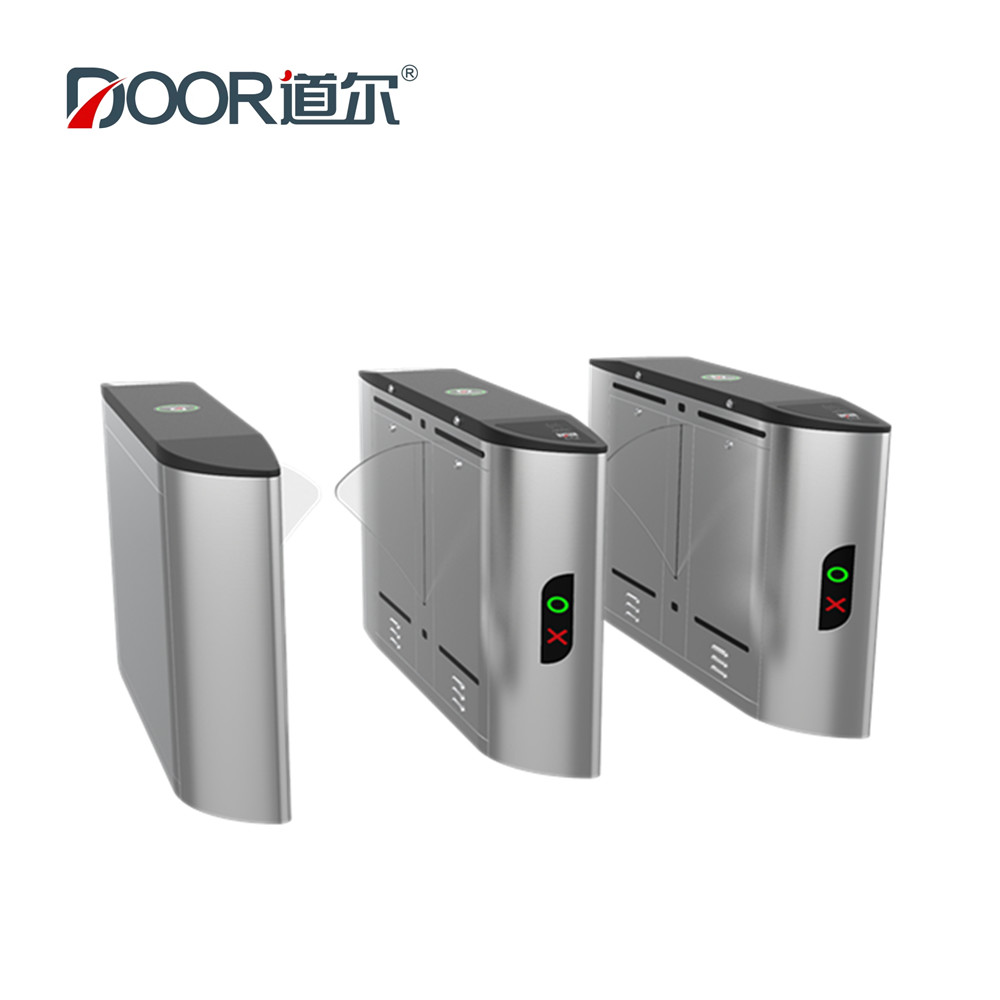

DC Brushless Motor Facial Recognition Turnstile with RS485 Interface 2
Shipping Information

Shipping fee and delivery date to be negotiated. Contact supplier for more details.
